Medical Syringe

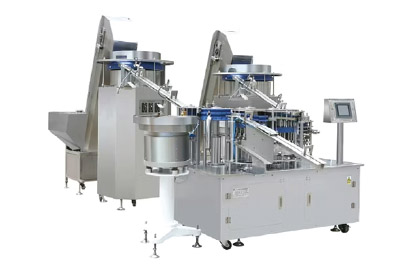

Automatic Needle Assembly Machine

images
MODEL NO.: MPW-AO
SPECIFICATION
Dimension 8,900 × 4,000 × 2,550 (L × W × H)
Weight About 3,000 kg
Electric Power AC 3P × 220V / 380V / 440V
Electric Power Consumption 20 kW
Air Consumption 6 kg/cm², 1,300 Liter/Min
Product Capacity 48,000 ~ 52,000 Pcs/Hour
No. of Worker 1 ~ 2 Person
Option
  • Camera Inspection
  • Silicon Cooling System

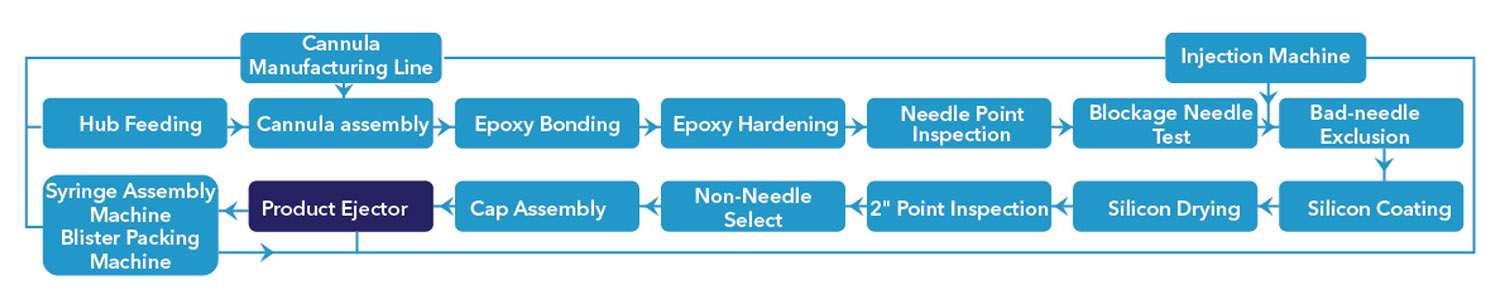

System Configuration
  • Hub Feeding Part
  • Corona Treatment Part
  • Cannula Assembly Part
  • Epoxy Bonding Part
  • Epoxy Bond Hardening Part
  • Needle Point Inspection Part
  • (Reverse Cannula & Damage Cannula Point Inspection)
  • Blockage Needle Test Part
  • (Clogged Needle & Non-Needle Inspection)
  • Bad-Needle Exclusion Part
  • Silicon Coating Part
  • 2nd Point Inspection Part
  • Non-Needle Select Part
  • Cap Assembly Part (Select Feeding)
  • Product Eject Part
Automatic Insulin Assembly Process
images
images

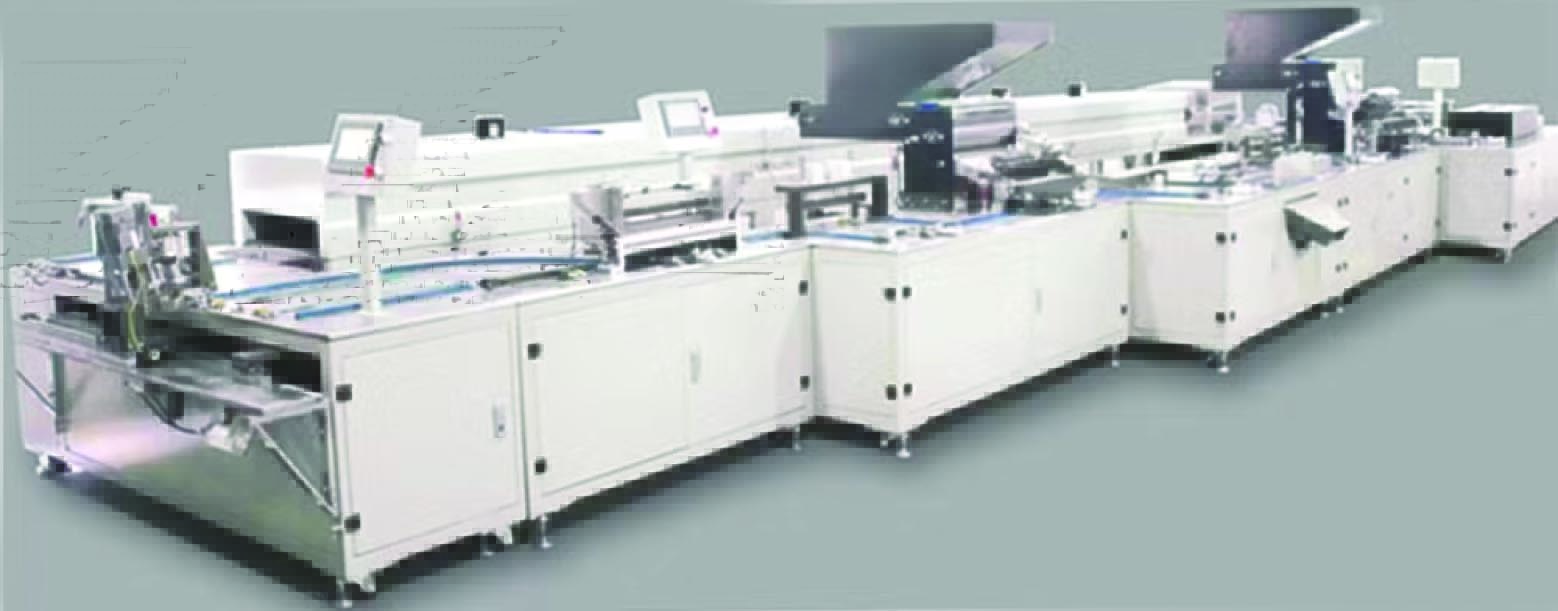

Barrel Printing Machine
images

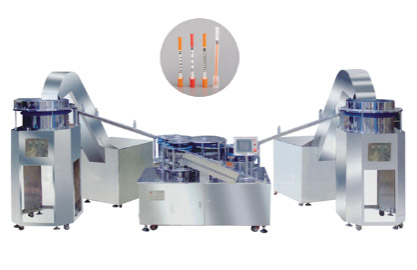

Insulin Assembly Machinе
images

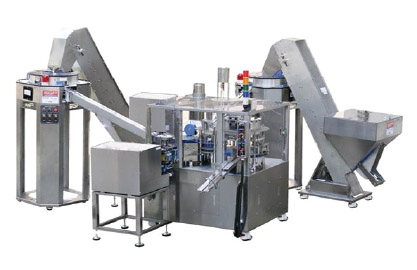

Plunger & Gasket Assembly Machine
